11 October 2016

VW Golf 3, smoke coming from the steering column.

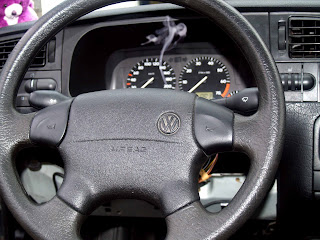

A small amount of smoke was coming out between the steering wheel and the instrument cluster. It smelled like plastic melting.




I suspected it was the ignition switch, which later turned out to be the case.

I disconnected the battery and removed the 2 Philips screws keeping the 2 plastic covers around the steering column.

Using a 13 mm. wrench and socket, I removed the bolt holding the steering column to the U-joint. (Green circles)



The bolt look like this:



On the left hand side there is a golden bolt which is keeping the steering column to the dashboard. (Green circle). I cut a trace in it to make it easier to remove.



Disconnect all the electric connectors. There are 3 connectors on each side plus the brown plastic ring around the ignition lock.



You can now pull the steering column and steering wheel out: Everything will be in one piece.

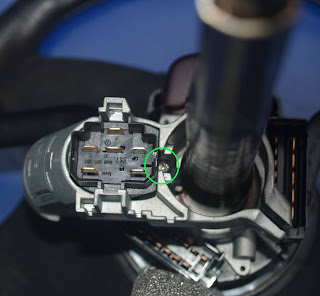

There is a Philips screw holding the ignition switch in place. (Green circle)


The new switch is to the right. Part number: 6N0905865


I opened the old switch and sure enough, the contacts where burned. (Green circles)
